Accessories

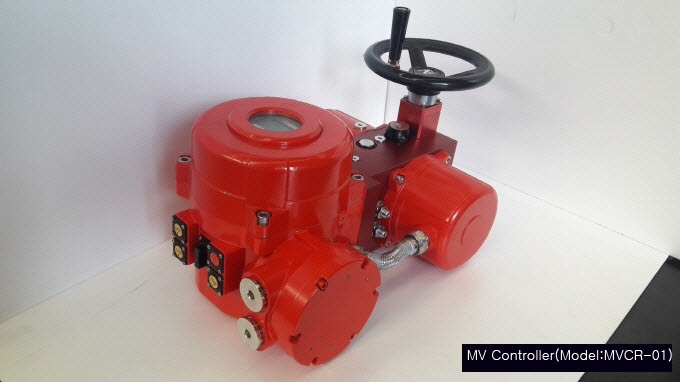

MV Controller (MVCR-01)

MV Controller

Standard Specifications

Item Spec Etc.
Motor BLDC Motor 200W/400W -
Power AC 220V 1Ph / AC 440V 3Ph -
Pump Spec 0.5CC ~ 2.0CC -
IN Signal 4mA ~ 20mA -
Out Signal 4mA ~ 20mA -
Out Torque 600N.m ~ 32,000N.m -
Max. Pressure 135 kg/m2 -
Water-proof IP 68 -
Standard Color RED -
Dememsion H:280mm, W:300mm, L:390mm All Model

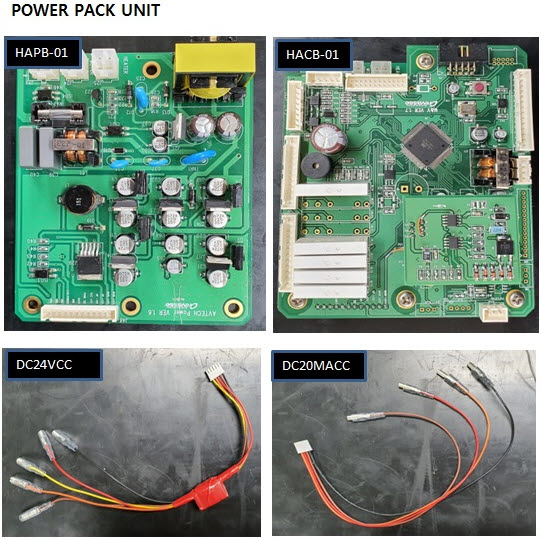

Power Pack (Power Pack Unit)

PCB Board

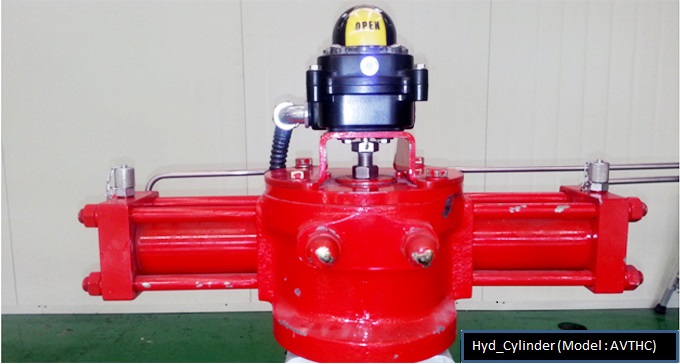

Hyd_Cylinder (AVTHC-01)

Hyd_Cylinder

Standard Specifications

Item Size(mm) Allowable Torque (N.m)
AVTHC-D05 544*212*131 73 ~ 955
AVTHC-D06 640*248*155 154 ~ 2013
AVTHC-D08 787*328*195 305 ~ 3975
AVTHC-D10 982*394*208 621 ~ 8077
AVTHC-D12 1,182*510*235 1175 ~ 15275
AVTHC-D14 1,408*584*259 1883 ~ 24486
AVTHC-D18 1,855*755*395 4237 ~ 55087

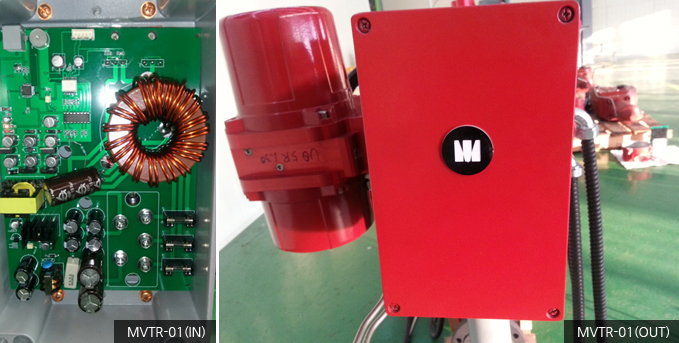

MVTR-01(IN), MVTR-01(OUT)

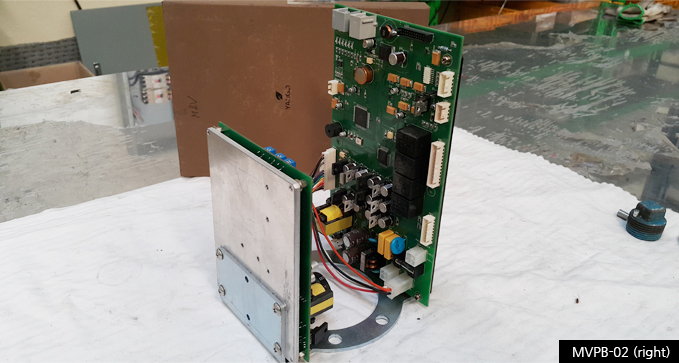

MTPB-02(right)

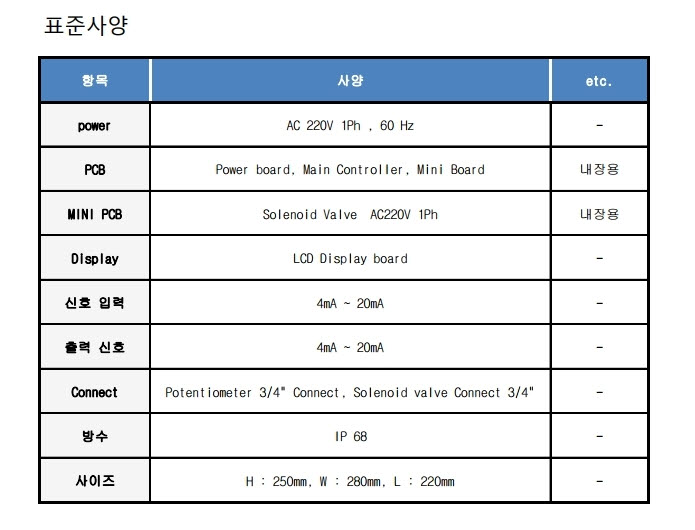

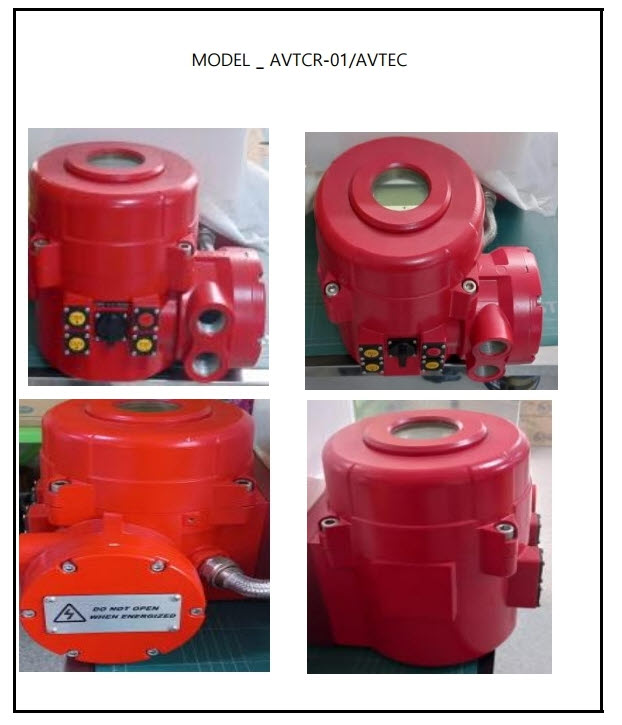

AVT Controller (AVTCR-01/AVTEC)

MTPB-02(right)

MTPB-02(right)

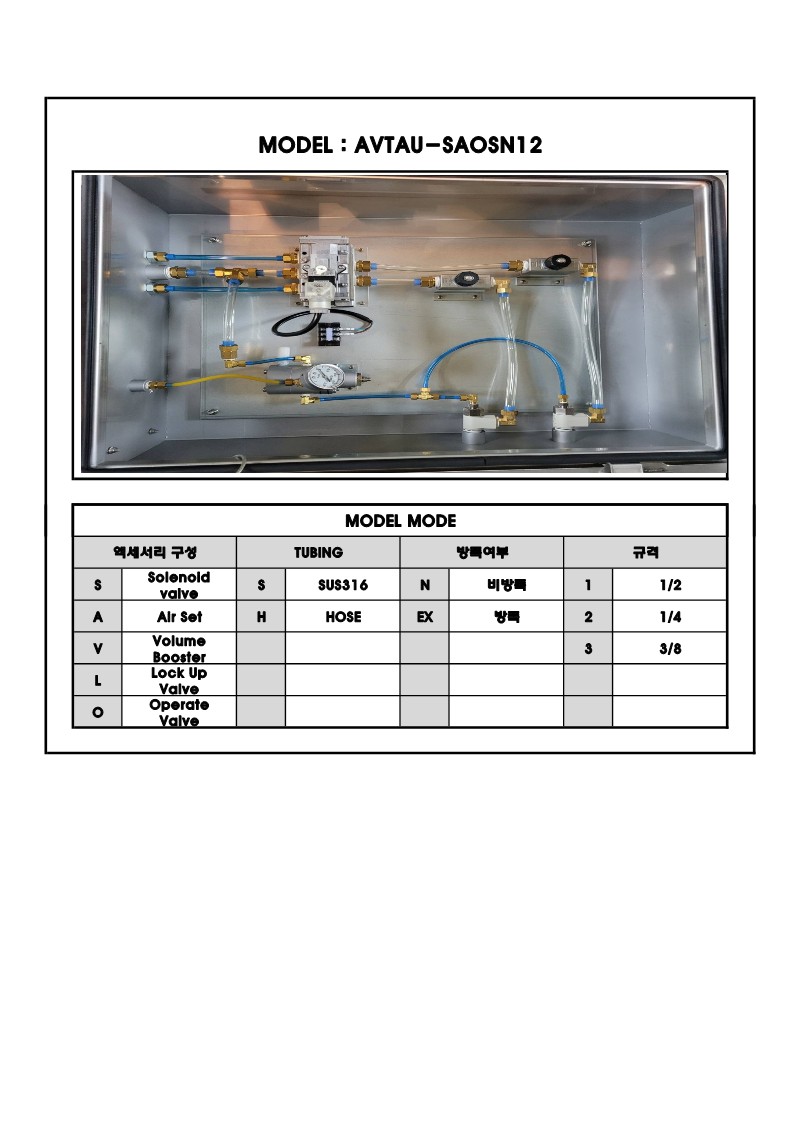

AVTAU (Cylinder , Pneumatic Actuator Operating Unit System)

MTPB-02(right)

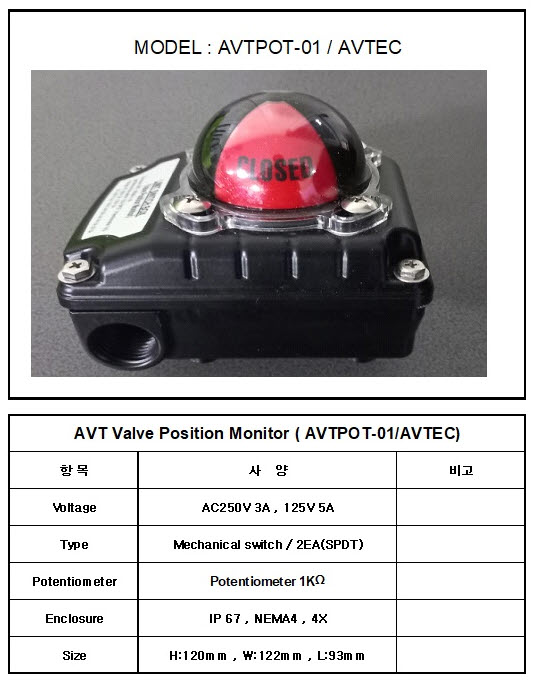

AVT Potentiometer (AVTPOT-01/AVTEC)

MTPB-02(right)

Reducer (CON-RED, ECC-RED)
ECC-REDUCER
