  • AVT1 Quarter-Turn

AVT1 Quarter-Turn

AVT1 Quarter-Turn

  • High output torque

    AVT1 series Actuator can be used to directly attach to valve shaft without separate reducer because it's output torque is much higher than electromotion's by constitution of the hydraulic drive unit.

  • Low power & Environmental

    AVT1 series Actuator is Low power and Environmental product because it uses 200W, 400W BLDE Motor and all power consumption is under 1kW so amount of using power is less.

  • Various construction

    AVT1 series Actuator consists of normal, position outgoing, panel attachment, panel+position outgoing, panel+proportion control type so users can use easily for environment or purpose by selecting.

  • Efficiency of installation

    AVT1 series Actuator can constitute the system efficiently for optimization with field conditions when install at underground or two-phase type because it can be installed by separated from each other of driving and control part.

  • Conversion feature of various settings

    Using LOCAL Switch attached to AVT1 series Actuator, you can easily change speed and various settings.

  • Miniaturization & Lightweight

    AVT1 series Actuator lets realized miniaturization after modular work of each part and lightweight after the body is made of aluminum die casting.
  • AVT10060

    AVT10060

    Standard Specifications

    Model AVT10060
    Allowable Torque (N.m) 73 ~ 955
    Operating Pressure (when 8 MPa) 600 N.m
    Maximum Axis Length 70
    Hand Wheel Revolution Count 35
    Enclosure Waterproof (IP68), Explosion Proof
    Electrical Diagram DIOP download DOP download STP download
    Exterior Diagram Actuator download AVT Series Exterior download
    Operating Time (sec) Maximum Axis Diameter Flange(ISO5211) Actuator Specification
    Basic Option Square Circular Key Basic Adapter Power Pack Actuator
    5~16 - 20 23 8x7 F10 F05, F12 H : 279.9
    W : 390    		 H : 112.1
    W : 135.3
    L : 324
    Automatic Pressure 170 bar (max. 210 bar)
    Terminal Double-sealed structure, 34 Contact points, M4 Screw, Rated AC250V / 5A
    Hydraulic Oil ISO VG46
    Standard Painting RED
    Power 50/60Hz, 1Ph, 220V, 440V
    Setting Method Opening and parameter setting using a local switch, Password Protection
    Motor Efficiency rate over 90%, BLDC Motor, 200w/400W
    Wire Entrance 2 X PF 1"
    Control Method Contact Point, Proportional Control, Communications
    Space Heater Equipped within the controller, 5W
    Torque Setting Variable Relief Valve, Screw Type
    Temperature Range -25℃ ~ 80℃
    Opening Measuring Device Embedded type, Digital/Analog, Percentage (%) shown
    Manual Operating Part Manual Handle, Switch Lever
  • AVT10110

    AVT10110

    Standard Specifications

    Model AVT10110
    Allowable Torque (N.m) 154 ~ 2013
    Operating Pressure (when 8 MPa) 1,100 N.m
    Maximum Axis Length 80
    Hand Wheel Revolution Count 66
    Enclosure Waterproof (IP68), Explosion Proof
    Electrical Diagram DIOP download DOP download STP download
    Exterior Diagram Actuator download AVT Series Exterior download
    Operating Time (sec) Maximum Axis Diameter Flange(ISO5211) Actuator Specification
    Basic Option Square Circular Key Basic Adapter Power Pack Actuator
    8~28 5~15 25 32 10x8 F12 F07, F14 H : 279.9
    W : 390    		 H : 126.1
    W : 157
    L : 398
    Automatic Pressure 170 bar (max. 210 bar)
    Terminal Double-sealed structure, 34 Contact points, M4 Screw, Rated AC250V / 5A
    Hydraulic Oil ISO VG46
    Standard Painting RED
    Power 50/60Hz, 1Ph, 220V, 440V
    Setting Method Opening and parameter setting using a local switch, Password Protection
    Motor Efficiency rate over 90%, BLDC Motor, 200w/400W
    Wire Entrance 2 X PF 1"
    Control Method Contact Point, Proportional Control, Communications
    Space Heater Equipped within the controller, 5W
    Torque Setting Variable Relief Valve, Screw Type
    Temperature Range -25℃ ~ 80℃
    Opening Measuring Device Embedded type, Digital/Analog, Percentage (%) shown
    Manual Operating Part Manual Handle, Switch Lever
  • AVT10220

    AVT10220

    Standard Specifications

    Model AVT10220
    Allowable Torque (N.m) 305 ~ 3975
    Operating Pressure (when 8 MPa) 2,200 N.m
    Maximum Axis Length 90
    Hand Wheel Revolution Count 127
    Enclosure Waterproof (IP68), Explosion Proof
    Electrical Diagram DIOP download DOP download STP download
    Exterior Diagram Actuator download AVT Series Exterior download
    Operating Time (sec) Maximum Axis Diameter Flange(ISO5211) Actuator Specification
    Basic Option Square Circular Key Basic Adapter Power Pack Actuator
    14~53 8~28 35 42 12x8 F14 F16 H : 279.9
    W : 390    		 H : 154.1
    W : 190
    L : 478
    Automatic Pressure 170 bar (max. 210 bar)
    Terminal Double-sealed structure, 34 Contact points, M4 Screw, Rated AC250V / 5A
    Hydraulic Oil ISO VG46
    Standard Painting RED
    Power 50/60Hz, 1Ph, 220V, 440V
    Setting Method Opening and parameter setting using a local switch, Password Protection
    Motor Efficiency rate over 90%, BLDC Motor, 200w/400W
    Wire Entrance 2 X PF 1"
    Control Method Contact Point, Proportional Control, Communications
    Space Heater Equipped within the controller, 5W
    Torque Setting Variable Relief Valve, Screw Type
    Temperature Range -25℃ ~ 80℃
    Opening Measuring Device Embedded type, Digital/Analog, Percentage (%) shown
    Manual Operating Part Manual Handle, Switch Lever
  • AVT10500

    AVT10500

    Standard Specifications

    Model AVT10500
    Allowable Torque (N.m) 621 ~ 8077
    Operating Pressure (when 8 MPa) 5,000 N.m
    Maximum Axis Length 120
    Hand Wheel Revolution Count 285
    Enclosure Waterproof (IP68), Explosion Proof
    Electrical Diagram DIOP download DOP download STP download
    Exterior Diagram Actuator download MV Series Exterior download
    Operating Time (sec) Maximum Axis Diameter Flange(ISO5211) Actuator Specification
    Basic Option Square Circular Key Basic Adapter Power Pack Actuator
    31~119 16~61 50 65 20x12 F16 F25 H : 279.9
    W : 390    		 H : 183.6
    W : 236.5
    L : 634
    Automatic Pressure 170 bar (max. 210 bar)
    Terminal Double-sealed structure, 34 Contact points, M4 Screw, Rated AC250V / 5A
    Hydraulic Oil ISO VG46
    Standard Painting RED
    Power 50/60Hz, 1Ph, 220V, 440V
    Setting Method Opening and parameter setting using a local switch, Password Protection
    Motor Efficiency rate over 90%, BLDC Motor, 200w/400W
    Wire Entrance 2 X PF 1"
    Control Method Contact Point, Proportional Control, Communications
    Space Heater Equipped within the controller, 5W
    Torque Setting Variable Relief Valve, Screw Type
    Temperature Range -25℃ ~ 80℃
    Opening Measuring Device Embedded type, Digital/Analog, Percentage (%) shown
    Manual Operating Part Manual Handle, Switch Lever
  • AVT10900

    AVT10900

    Standard Specifications

    Model AVT10900
    Allowable Torque (N.m) 1175 ~ 15275
    Operating Pressure (when 8 MPa) 9,000 N.m
    Maximum Axis Length 120
    Hand Wheel Revolution Count 728
    Enclosure Waterproof (IP68), Explosion Proof
    Electrical Diagram DIOP download DOP download STP download
    Exterior Diagram Actuator download MV Series Exterior download
    Operating Time (sec) Maximum Axis Diameter Flange(ISO5211) Actuator Specification
    Basic Option Square Circular Key Basic Adapter Power Pack Actuator
    76~301 39~154 60 75 20x12 F16 F25 H : 279.9
    W : 390    		 H : 219.1
    W : 315
    L : 919
    Automatic Pressure 170 bar (max. 210 bar)
    Terminal Double-sealed structure, 34 Contact points, M4 Screw, Rated AC250V / 5A
    Hydraulic Oil ISO VG46
    Standard Painting RED
    Power 50/60Hz, 1Ph, 220V, 440V
    Setting Method Opening and parameter setting using a local switch, Password Protection
    Motor Efficiency rate over 90%, BLDC Motor, 200w/400W
    Wire Entrance 2 X PF 1"
    Control Method Contact Point, Proportional Control, Communications
    Space Heater Equipped within the controller, 5W
    Torque Setting Variable Relief Valve, Screw Type
    Temperature Range -25℃ ~ 80℃
    Opening Measuring Device Embedded type, Digital/Analog, Percentage (%) shown
    Manual Operating Part Manual Handle, Switch Lever
  • AVT11600

    AVT11600

    Standard Specifications

    Model AVT11600
    Allowable Torque (N.m) 1883 ~ 24486
    Operating Pressure (when 8 MPa) 16,000 N.m
    Maximum Axis Length 165
    Hand Wheel Revolution Count 1305
    Enclosure Waterproof (IP68), Explosion Proof
    Electrical Diagram DIOP download DOP download STP download
    Exterior Diagram Actuator download MV Series Exterior download
    Operating Time (sec) Maximum Axis Diameter Flange(ISO5211) Actuator Specification
    Basic Option Square Circular Key Basic Adapter Power Pack Actuator
    136~539 70~276 70 95 25x14 F25 F30, F35 H : 279.9
    W : 390    		 H : 282.1
    W : 383.5
    L : 1246
    Automatic Pressure 170 bar (max. 210 bar)
    Terminal Double-sealed structure, 34 Contact points, M4 Screw, Rated AC250V / 5A
    Hydraulic Oil ISO VG46
    Standard Painting RED
    Power 50/60Hz, 1Ph, 220V, 440V
    Setting Method Opening and parameter setting using a local switch, Password Protection
    Motor Efficiency rate over 90%, BLDC Motor, 200w/400W
    Wire Entrance 2 X PF 1"
    Control Method Contact Point, Proportional Control, Communications
    Space Heater Equipped within the controller, 5W
    Torque Setting Variable Relief Valve, Screw Type
    Temperature Range -25℃ ~ 80℃
    Opening Measuring Device Embedded type, Digital/Analog, Percentage (%) shown
    Manual Operating Part Manual Handle, Switch Lever
  • AVT13200

    AVT13200

    Standard Specifications

    Model AVT13200
    Allowable Torque (N.m) 4237 ~ 55085
    Operating Pressure (when 8 MPa) 32,000 N.m
    Maximum Axis Length 210
    Hand Wheel Revolution Count 2736
    Enclosure Waterproof (IP68), Explosion Proof
    Electrical Diagram DIOP download DOP download STP download
    Exterior Diagram Actuator download MV Series Exterior download
    Operating Time (sec) Maximum Axis Diameter Flange(ISO5211) Actuator Specification
    Basic Option Square Circular Key Basic Adapter Power Pack Actuator
    246~979 126~500 85 110 28x16 F30 F35, F40 H : 279.9
    W : 390    		 H : 363.1
    W : 465
    L : 1462
    Automatic Pressure 170 bar (max. 210 bar)
    Terminal Double-sealed structure, 34 Contact points, M4 Screw, Rated AC250V / 5A
    Hydraulic Oil ISO VG46
    Standard Painting RED
    Power 50/60Hz, 1Ph, 220V, 440V
    Setting Method Opening and parameter setting using a local switch, Password Protection
    Motor Efficiency rate over 90%, BLDC Motor, 200w/400W
    Wire Entrance 2 X PF 1"
    Control Method Contact Point, Proportional Control, Communications
    Space Heater Equipped within the controller, 5W
    Torque Setting Variable Relief Valve, Screw Type
    Temperature Range -25℃ ~ 80℃
    Opening Measuring Device Embedded type, Digital/Analog, Percentage (%) shown
    Manual Operating Part Manual Handle, Switch Lever

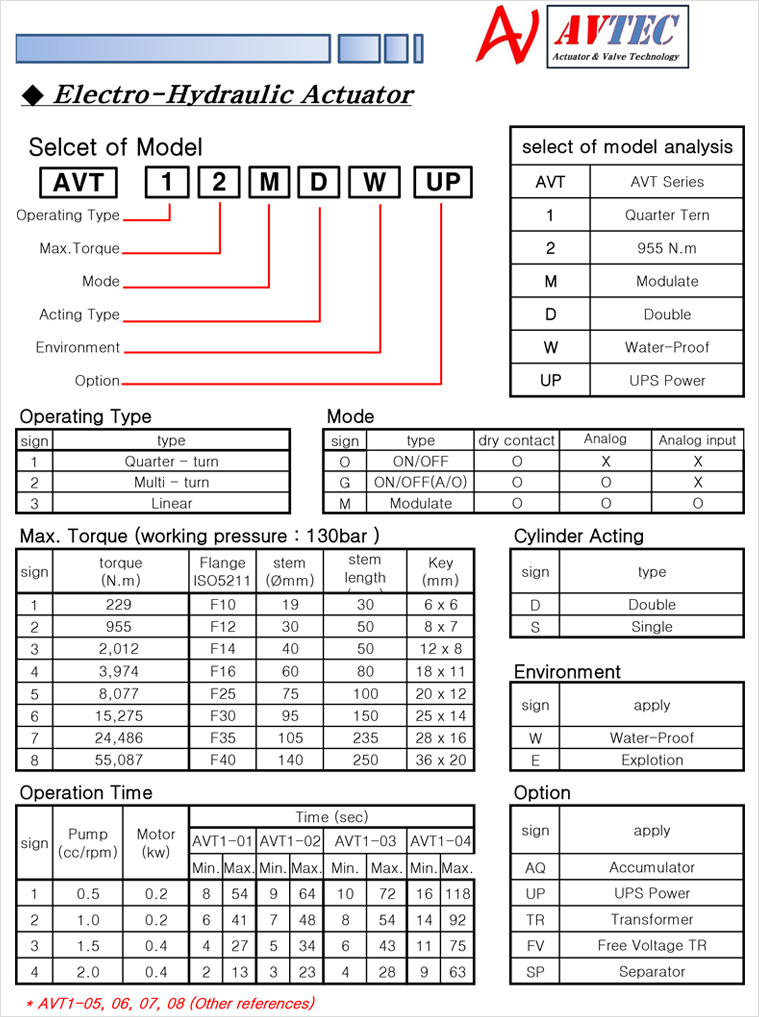

  • Select of Model

    Select of Model

    Elecro-Hydraulic Quarter Turn Actuator

    Select of Model
